Part 13:  Structure on the tow deck.

The structure on the back of the towdeck is the entry to the crew cabins and storage room. The entrance consist of two doors and an sliding hatch, on the right and left side of the entrace there is a hatch with a ladder down the storage rooms. On the old structure i removed the old door and hatches and make new more detailed one's. Even the bar's that guide the towline are renewed.

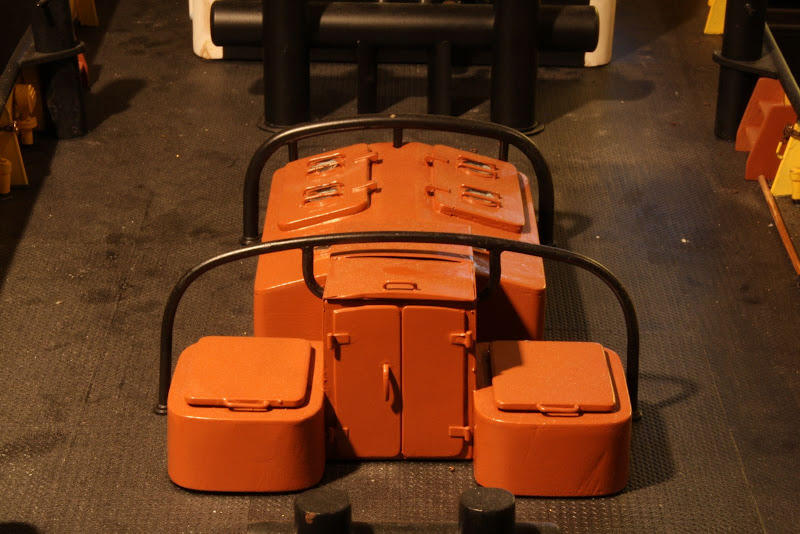

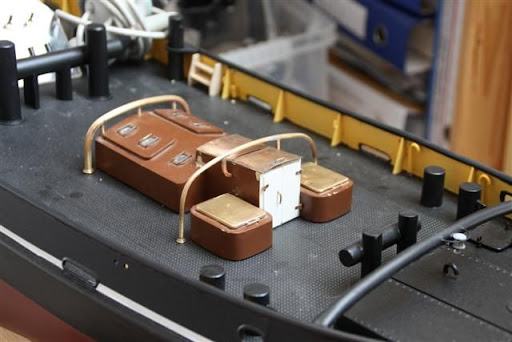

But here are some picture's to illustrate the changes:


New doors


the hatches and towline guide bars renewed.

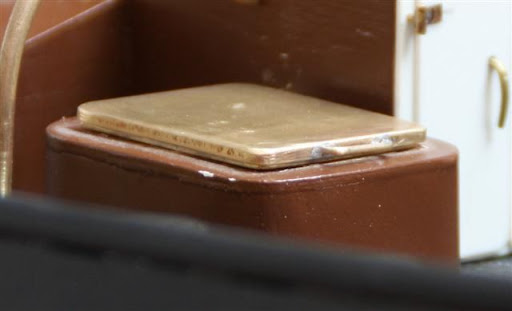

The sliding hatch is made of Fosforbrass it's a hard metal, thin and very light. The hatch consists of two parts a sliding part and fixed part.


Hatch made of brass

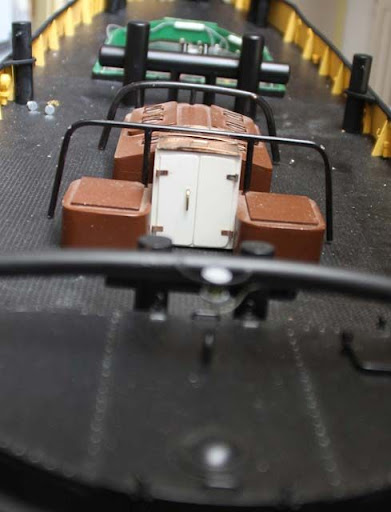

Allmost ready even the hinges on the hatches at the back i tried to make.

Gr Martin  :D
