Re: SDM TUG Salvador Dalý by alimurimeta
« Reply #16 on: February 25, 2016, 05:46:26 »
Hello to all

These are the stages of the construction of two connector for towing. I've made using the brass rod and brass tubes and copper. All soldered with the torch









Ciao Ciao, ALIMURIMETA
« Last Edit: February 24, 2017, 01:38:27 by ALIMURIMETA »
Francesco G. alias ALIMURIMETA

ALIMURIMETA

  • Newbie
  • *
  • Posts: 47
  • only tugs the bravest
    • AMIREL
Re: SDM TUG Salvador Dalý by alimurimeta
« Reply #17 on: February 25, 2016, 05:51:30 »
Hello to all


I mounted the smokestacks using the usual templates self-adhesive vinyl. with an aluminum tube I simulated flue chimney





I started the construction of the pipeline to fight fire







See you soon, ALIMURIMETA
« Last Edit: February 24, 2017, 01:39:08 by ALIMURIMETA »
Francesco G. alias ALIMURIMETA

sea monkey

  • Site Supporter
  • Admiral Poster
  • *
  • Posts: 1088
Re: SDM TUG Salvador Dalý by alimurimeta
« Reply #18 on: February 25, 2016, 13:32:59 »
Nice work on the fire hydrants.

2tugboats

  • Moderator
  • Hero Member
  • *****
  • Posts: 609
  • Roughly 3/4 inch scale semi accurate
    • Two Tugboats
Re: SDM TUG Salvador Dalý by alimurimeta
« Reply #19 on: February 25, 2016, 20:08:03 »
For sure the fire hydrant manifold and its valves is knock-out. I hadn't thought
about soldering them like you did. Thank you for the superior piping ideas.

Michael
Yet another case of why men and women go down to the sea in ships. . .A pleasure to be here and smell the salt air. Thank you Tugboat Forum. . .Michael in Anacortes, Washington www.twotugboats.com

ALIMURIMETA

  • Newbie
  • *
  • Posts: 47
  • only tugs the bravest
    • AMIREL
Re: SDM TUG Salvador Dalý by alimurimeta
« Reply #20 on: March 24, 2016, 03:06:21 »

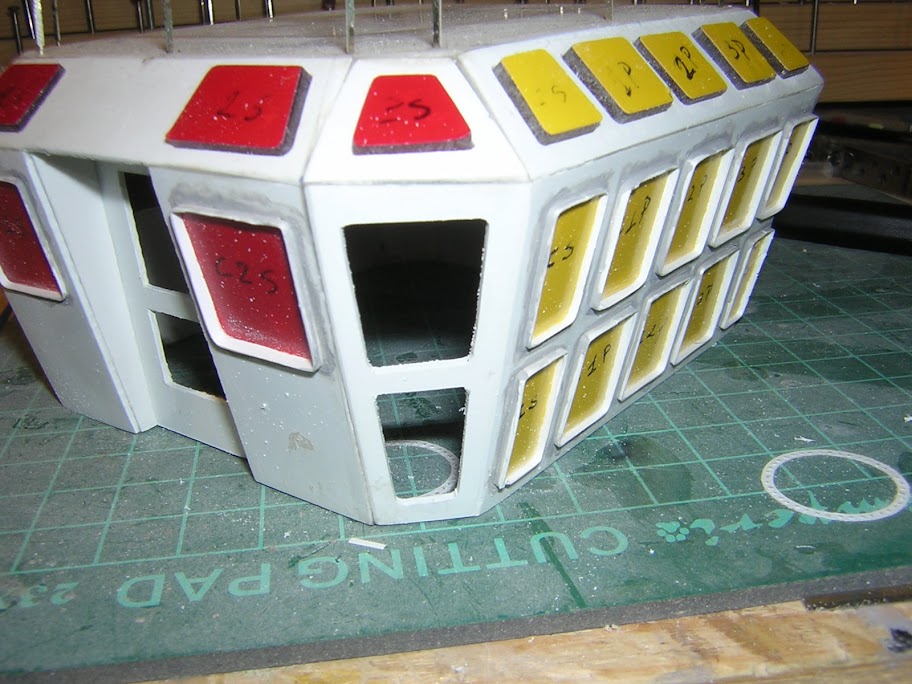

Hello all, to change a little bit the "usual gruel" of the accessories, I continued in the construction of the wheelhouse windows

To achieve proceed as explained in the construction diary of my smit nederland. In practice I have realized the jigs vinyl adhesive that I applied to a Plexiglas sheet 2 mm thick. With tunnel and bench grinder I finished the edges of the windows following the profile of the templates.
Not to confuse with the various windows, I used vinyl in various colors.





The vinyl I will remove it only after having painted the wheelhouse.
When I've finished editing all the windows, the steering will appear as the Rubik's cube.



Hello, I step a few photos of the wheelhouse windows. In practice I have almost finished the 47 windows. As mentioned in previous messages, I applied a syringe needle to the spout of the tube of glue to have a microdosing and prevent sagging







Ciao Ciao
« Last Edit: February 24, 2017, 01:39:59 by ALIMURIMETA »
Francesco G. alias ALIMURIMETA

ALIMURIMETA

  • Newbie
  • *
  • Posts: 47
  • only tugs the bravest
    • AMIREL
Re: SDM TUG Salvador Dalý by alimurimeta
« Reply #21 on: March 24, 2016, 03:10:57 »
Hello, here are the photos taken last night. I started gluing of parapets of support stringers













Ciao Ciao
« Last Edit: February 24, 2017, 01:40:46 by ALIMURIMETA »
Francesco G. alias ALIMURIMETA

ALIMURIMETA

  • Newbie
  • *
  • Posts: 47
  • only tugs the bravest
    • AMIREL
Re: SDM TUG Salvador Dalý by alimurimeta
« Reply #22 on: March 24, 2016, 03:18:40 »
Hello everyone. I tried to re-paint the outside of the ceiling, but the end result did not satisfy me. There is still too much transparency for my taste. So I decided to use "heavy artillery" or micrometer drill to practice the slots that form the inside of the ceiling. To obtain more or less the same shape of the ceiling, I realized silhouettes of vinyl (blue film) that I applied on a PVC strip 2.8 mm thick. The ceiling of the milled slots (3 mm diameter), I cut with a band saw and finished with disc sander. I have practiced a lateral hole for the passage of wires that power the LED (1.2 mm). Always with the usual  vinyl template I clipped from plexyglas sp. 1 mm transparent caps of the last ceiling. Per I applied strips of plasticard from 0.3 mm to simulate the attachment clips of the transparent cover to the fixture body.











Ciao Ciao
« Last Edit: February 24, 2017, 01:41:28 by ALIMURIMETA »
Francesco G. alias ALIMURIMETA

ALIMURIMETA

  • Newbie
  • *
  • Posts: 47
  • only tugs the bravest
    • AMIREL
Re: SDM TUG Salvador Dalý by alimurimeta
« Reply #23 on: March 24, 2016, 03:23:14 »
Hello, here are the pictures of what was done over the weekend. I realized the pylons that serve for the automatic release of the liferafts. I have them made with plasticard and copper wire. The self-inflating I made them with the rod and beech strips plasticard and copper wire.









Ciao ciao
« Last Edit: February 24, 2017, 01:42:14 by ALIMURIMETA »
Francesco G. alias ALIMURIMETA

mike_victoriabc

  • Admiral Poster
  • ******
  • Posts: 1673
Re: SDM TUG Salvador Dalý by alimurimeta
« Reply #24 on: March 24, 2016, 06:25:45 »
Pretty interesting build - lots of patience in this project. Nice work!

ALIMURIMETA

  • Newbie
  • *
  • Posts: 47
  • only tugs the bravest
    • AMIREL
Re: SDM TUG Salvador Dalý by alimurimeta
« Reply #25 on: March 24, 2016, 06:45:32 »
I started the design and construction of the service crane for handling the tender. There is no a drawing of this davit. The only thing that I could find were a couple of pictures with two different perspectives of shooting. With the help of the computer I traced the lines with the profiles of the crane on the pictures and I managed more or less to have the shapes and dimensions of the crane. At this point I climbed the design to make it consistent with the scale of the model. I exploded all the pieces of the crane, "taking it apart" piece by piece with CAD.











Ciao Ciao
« Last Edit: February 24, 2017, 01:44:51 by ALIMURIMETA »
Francesco G. alias ALIMURIMETA

Puffin

  • Admiral Poster
  • ******
  • Posts: 1432
  • WestMinster Apache
Re: SDM TUG Salvador Dalý by alimurimeta
« Reply #26 on: March 24, 2016, 11:24:43 »
REALLY A  NIECE PIECE OF WORK , YOU SHOULD BE PROUD .   puffin

Kev30

  • Sr. Member
  • ****
  • Posts: 410
Re: SDM TUG Salvador Dalý by alimurimeta
« Reply #27 on: March 24, 2016, 13:11:19 »
Very nice work and very interesting to hear all your different methods of doing things Alimurimeta especially your metalwork detail. Keep up the good work.

Regards
Kevin

tug-arlyn-nelson

  • Hero Member
  • *****
  • Posts: 542
Re: SDM TUG Salvador Dalý by alimurimeta
« Reply #28 on: March 26, 2016, 19:20:20 »
Extreme detail!  Very nice work.  Labor intensive for sure.

ALIMURIMETA

  • Newbie
  • *
  • Posts: 47
  • only tugs the bravest
    • AMIREL
Re: SDM TUG Salvador Dalý by alimurimeta
« Reply #29 on: February 23, 2017, 06:21:21 »
Hello, after a long time since the last visit, I show you the current status of my tug

























Ciao ALIMURIMETA
« Last Edit: February 24, 2017, 01:45:57 by ALIMURIMETA »
